350G-W-L314-LFT-000
350G XL Lift Series - 14 Meters (45.5 ft.)
Model Heights:
14
meters /
45.5
feet
Payload Capacity:
38.6
kg /
85
lbs
(See Capabilities Chart)
Wind Loading:
144.8
km/h /
90
mph
Deployment Time:
2
-
2
people
Outside Diameter:
3.5
inches
Testing: MIL-STD-810G
Transport:
(2) 62x21x14.5 Custom Hard Cases
The 350G XL Lift Series Mast is the strongest military mast that we offer and can support 75 to 180 lbs. payloads depending on the model height selected.
Primary Use – Maximum Payloads
Multiple Antennas, Wireless Data Communications, 4G LTE / Cellular, Video Surveillance
Deployment Method

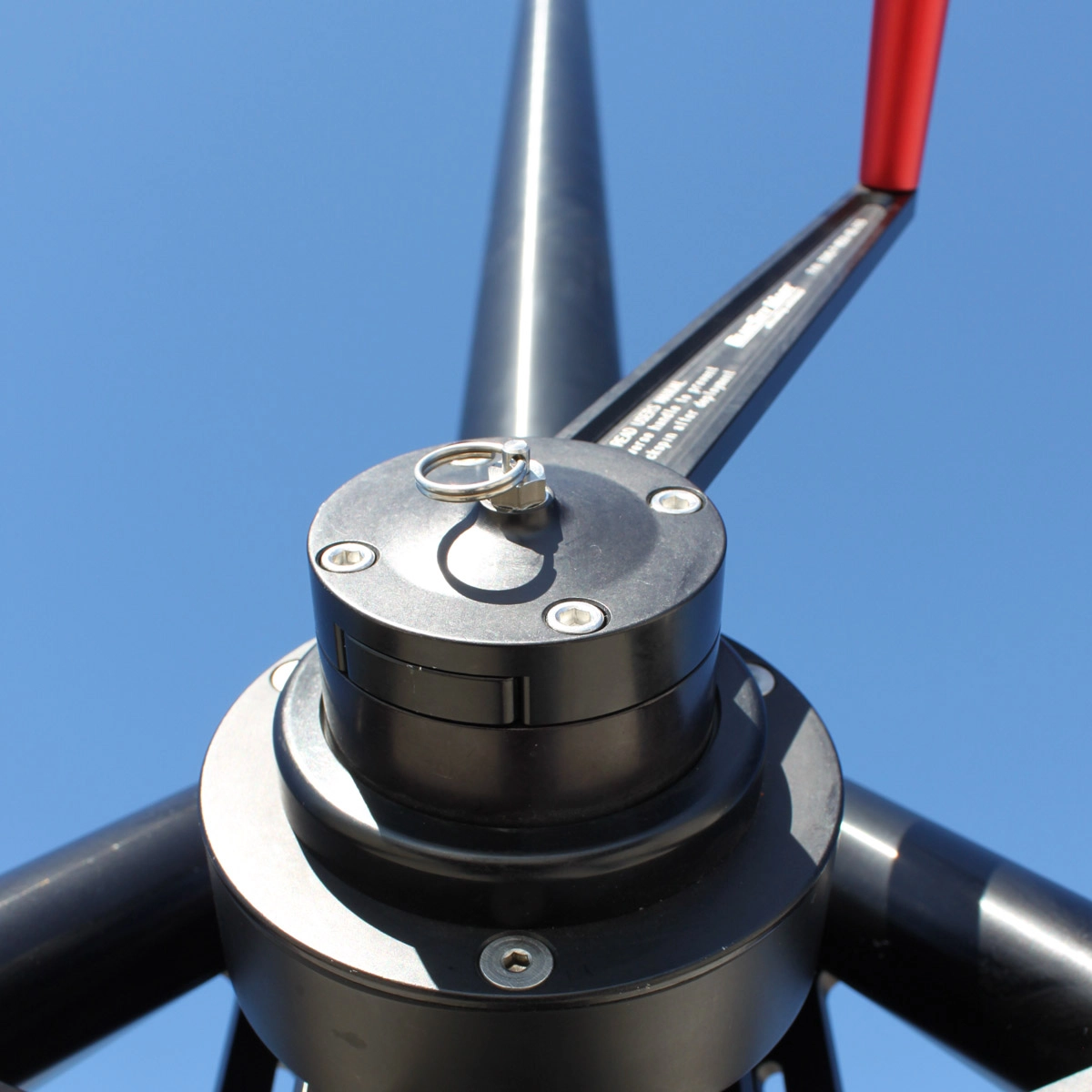

This is a fast mechanical lift system. The center mast sections are deployed up through the tripod using a self braking mechanical winch and base plate.
Patented tripod design with telescoping legs, cam lock and bubble levels
3.5 inch OD interlocking mast sections constructed of aerospace grade aluminum alloy
Mechanical Lift System – self braking winch and base plate
Custom bearing system built into the tripod to help eliminate binding during deployment
Color Coded Guy Kits
Free spinning primary and secondary guy rings for direction control
Guy Rope made of Spectra Cord, a woven fiber 10 times stronger than common cable
Packs down into (2) 62 x 21 x 14.5 Custom Hard Cases
4G LTE
Military RF Communications
Video Surveillance
Wireless Data Communications
350G XL Lift Series - 5 Meters (17.5 ft.)
Model Heights:
5
meters /
17.5
feet
Payload Capacity:
79.4
kg /
175
lbs
(See Capabilities Chart)
Wind Loading:
144.8
km/h /
90
mph
Deployment Time:
1
-
2
people
Outside Diameter:
3.5
inches
Testing: MIL-STD-810G
Transport:
(2) 62x21x14.5 Custom Hard Cases
350G XL Lift Series - 8 Meters (28 ft.)
Model Heights:
8
meters /
28
feet
Payload Capacity:
65.8
kg /
145
lbs
(See Capabilities Chart)
Wind Loading:
144.8
km/h /
90
mph
Deployment Time:
2
-
2
people
Outside Diameter:
3.5
inches
Testing: MIL-STD-810G
Transport:
(2) 62x21x14.5 Custom Hard Cases
350G XL Lift Series - 10 Meters (31.5 ft.)
Model Heights:
10
meters /
31.5
feet
Payload Capacity:
56.7
kg /
125
lbs
(See Capabilities Chart)
Wind Loading:
144.8
km/h /
90
mph
Deployment Time:
2
-
2
people
Outside Diameter:
3.5
inches
Testing: MIL-STD-810G
Transport:
(2) 62x21x14.5 Custom Hard Cases
