Versatile Capability at the Tactical Edge
jEKYLL is a compact and highly modular Uncrewed Ground Vehicle capable of performing a broad range of operations in austere environments.
- Small footprint, low-signature design
- Rapid modular payload configuration
- Heavy lift, push, and tow capability
- Seamless tactical network integration
- Tracked mobility for complex terrain

Compact, Low-Signature Design
jEKYLL delivers high mission capability in a compact platform designed to reduce visual, acoustic and thermal detectability. Its small footprint enables discreet movement through contested environments, confined urban spaces, and areas inaccessible to larger systems - helping teams operate with reduced exposure and greater survivability.
Rapid Modular Payload Configuration
Built for mission flexibility, jEKYLL supports rapid payload reconfiguration without specialized tools or extensive modification. The platform can quickly transition between sustainment, CASEVAC, ISR, communications relay, and other mission roles, enabling a single system to support evolving operational requirements.
View mission configurations.

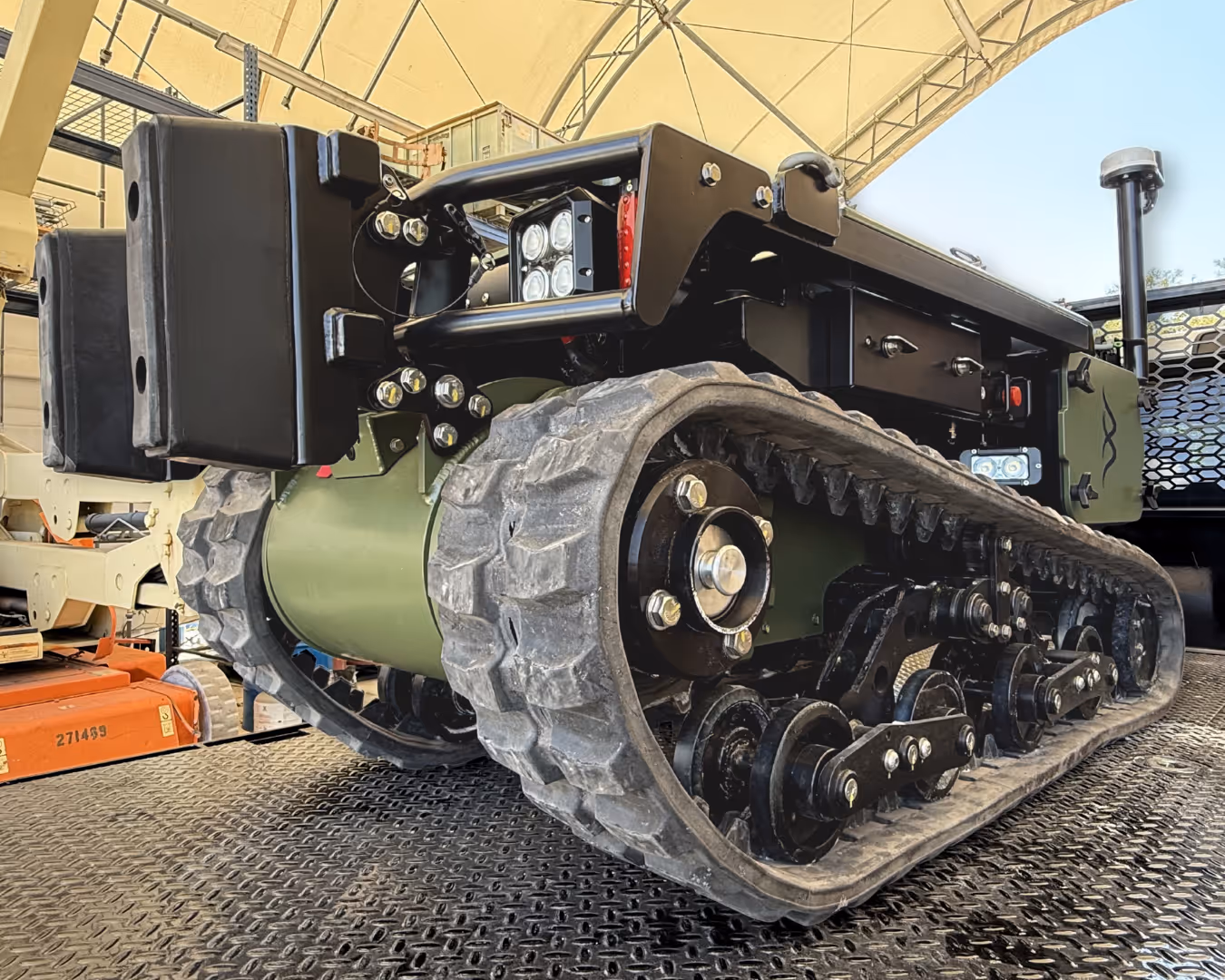

Heavy Lift, Push, and Tow Capability
Despite its compact size, jEKYLL delivers significant lifting, towing, and pushing capability. The platform can transport up to 800 kg (~1,764 lbs.), tow up to 1,000 kg (~2,200 lbs.), and push heavy loads across difficult terrain, providing teams with the ability to move critical equipment and supplies while reducing physical burden and operational risk.
See jEKYLL's tow capability.
Seamless Tactical Network Integration
jEKYLL's open, radio-agnostic architecture enables integration wtih existing tactical communictions and command-and-control systems. Compatible with leading network solutions and open interfaces, the platform supports rapid fielding while maintaining flexibility for future technologies and mission systems.
Tracked Mobility for Complex Terrain
Designed for austere environments, jEKYLL's tracked mobility system provides reliable traction and maneuverability across mud, sand, snow, rubble, and steep inclines. Its low center of gravity and compact form factor enable movement through narrow pathways, stairs, and confined spaces where traditional vehicles cannot operate effectively.
Watch jEKYLL maneuver confined spaces.

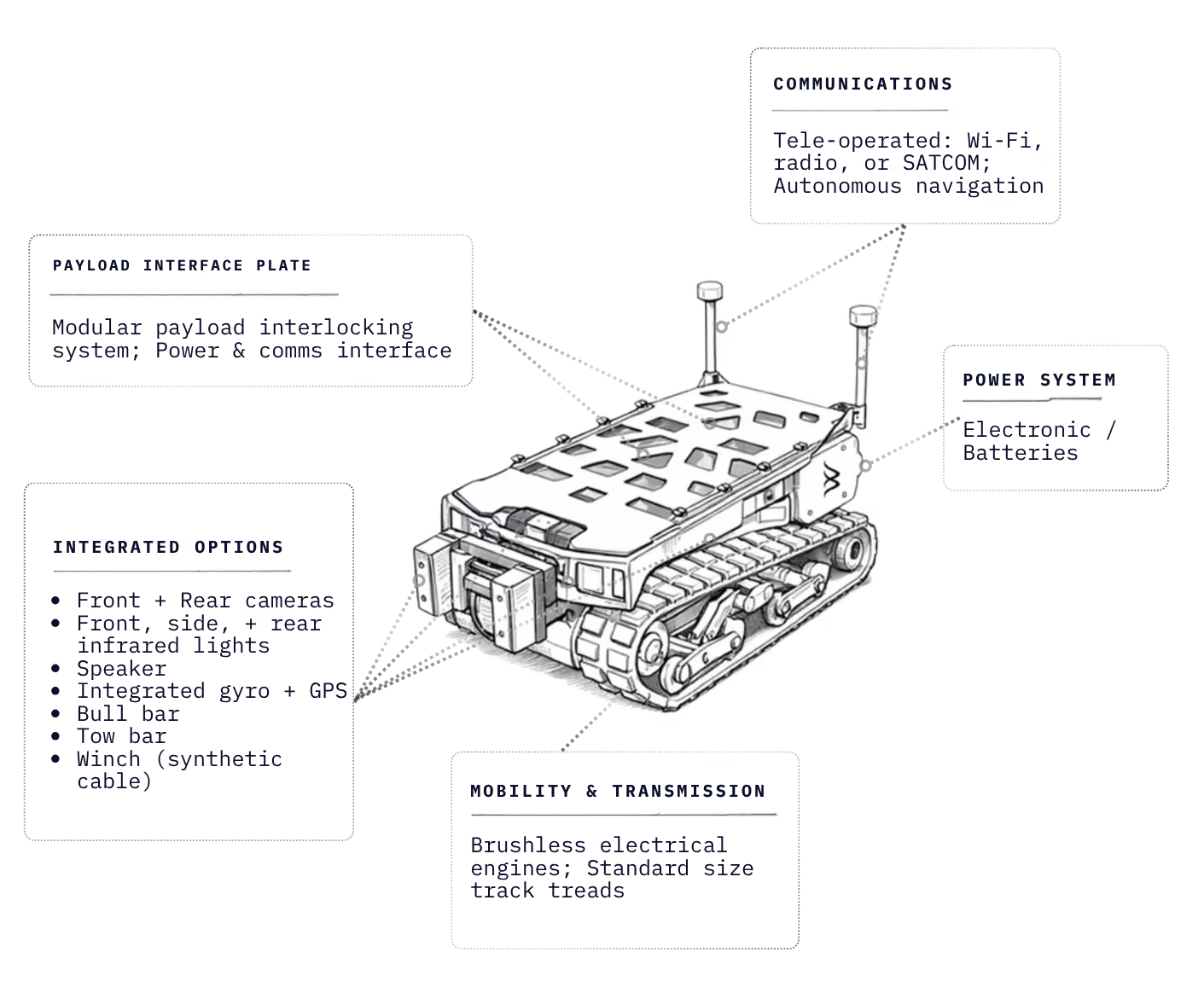

Specifications & Options
jEKYLL Standard Platform Configuration

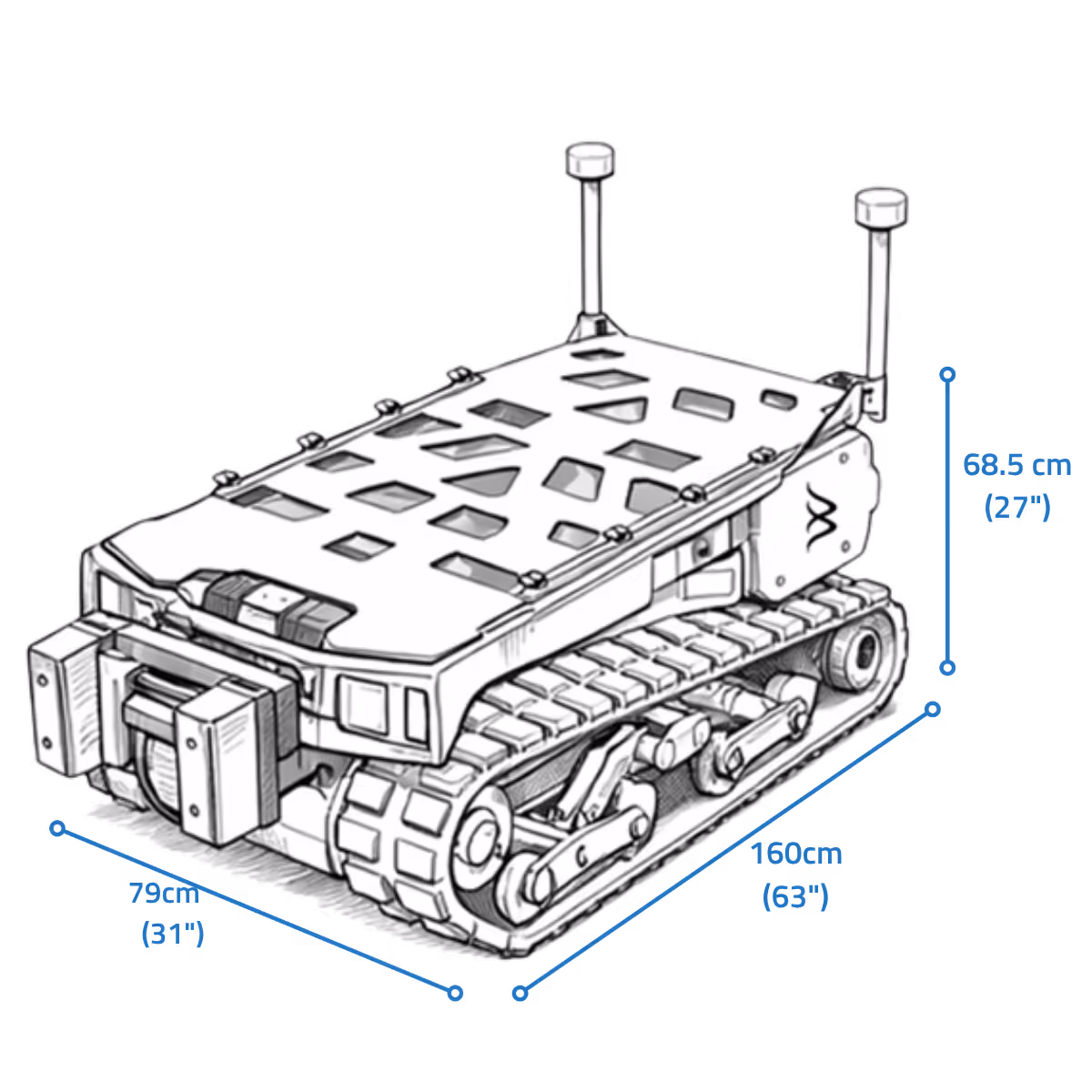

Dimensions: W x L x H
(w/o payload)
790mm x 1600mm x 685mm
31" x 63" x 27"
Weight
(w/o payload)
500 kg
~1102 lbs.
Rated Payload Weight
800 kg
~1764 lbs.
Mobility Type
Track System equipped with shock absorbers, tension system, anti-roll system and locking hubs
Speed2
0 - 12 km/h
~7.5 mi/h
Range3
~22 km
~14 mi
Push / Tow
816 kg / 1000 kg
1,800 lbs. / 2,200 lbs.
Ground Clearance1
35 cm
~13 in.
Slope1
45 deg Climb & Descend
35 deg Side Slope
Operating Temperature4
500o C Max
~932o F Max
Environmental
Compliant to IP66 Standards
Power System
51.2VDC / 160Ah Lithium-Ion Batteries
UN38.3 Certified
Charging Time
~4.5 Hours (charger dependent)
Control Options
Standard: Wi-Fi, Radio, or Satcom
Optional: Autonomy Navigation Module
1. Variable according to the payload & terrain. 2. Speed limited by software.
3. Variable according to speed & payload. 4. Achievable with “self-protection” activated

Configurations
Modular Payloads for Mission Success

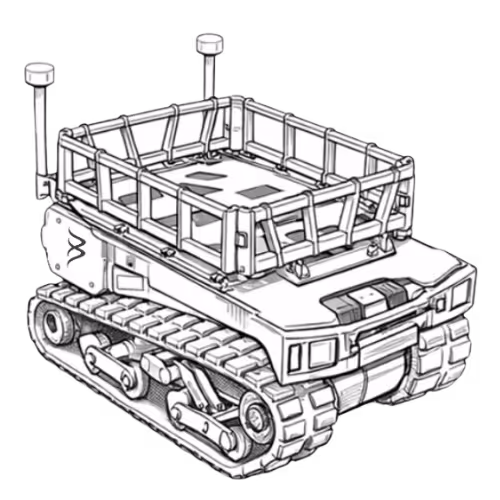

Logistical Transport
Move critical supplies, equipment, and ammunition directly to the point of need while reducing operator burden and exposure in contested or hard-to-access environments.

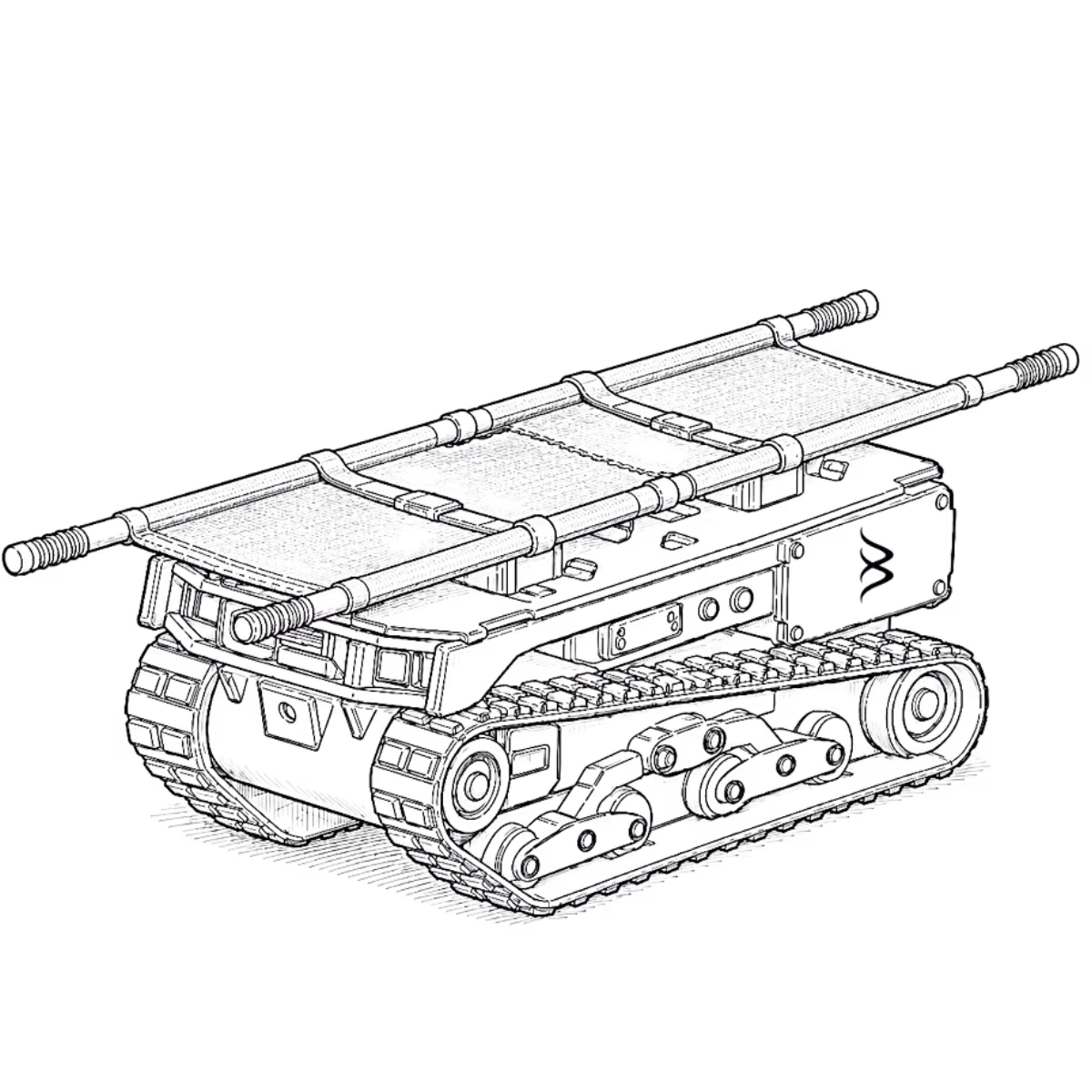

Casualty Evacuation (CASEVAC)
Support rapid casualty evacuation using modular litter configurations enabling low-signature movement of injured personnel across hazardous and complex terrain.

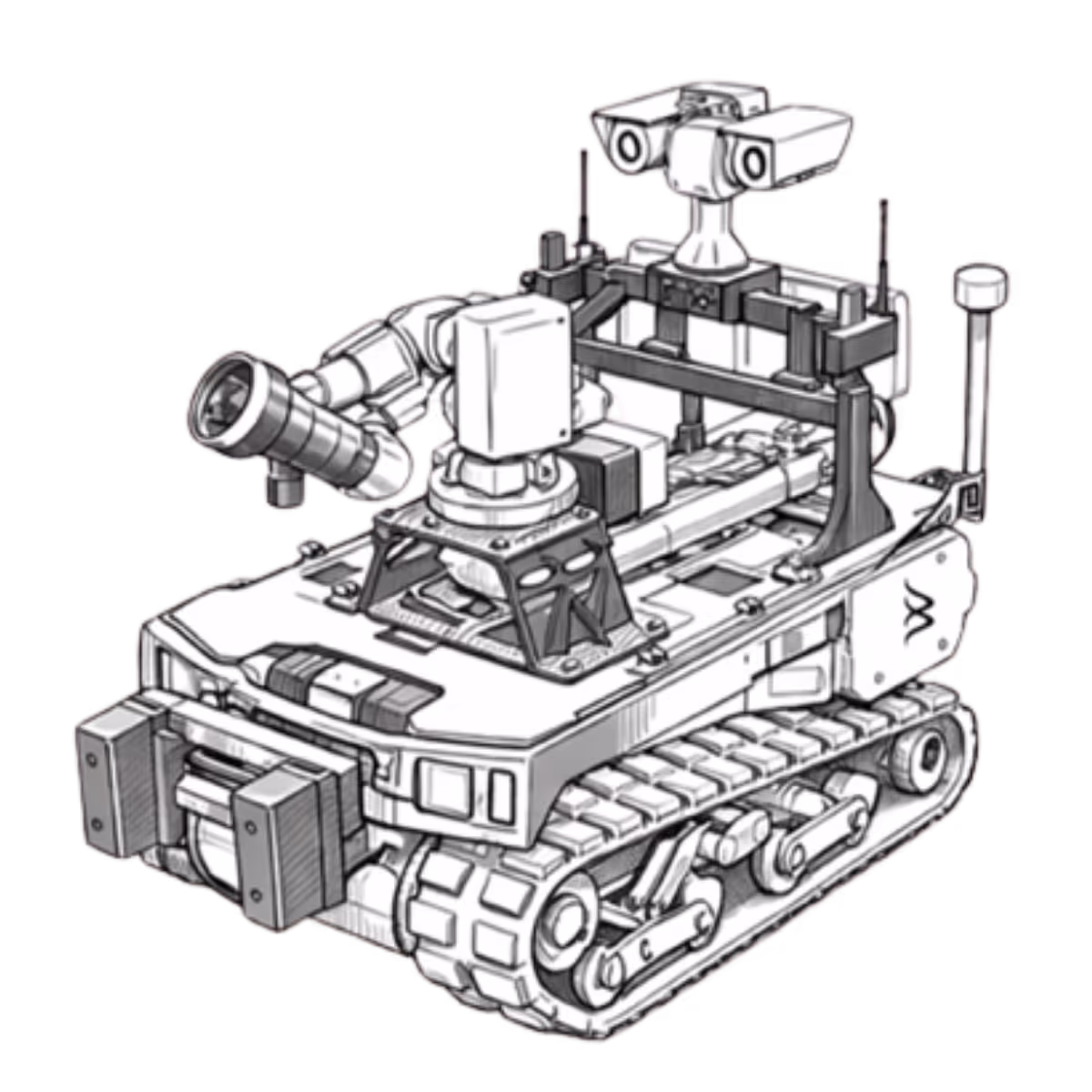

Firefighting & Decontamination
Operate in hazardous environments with firefighting and decontamination payloads, keeping personnel safely removed from heat, smoke, and dangerous materials.

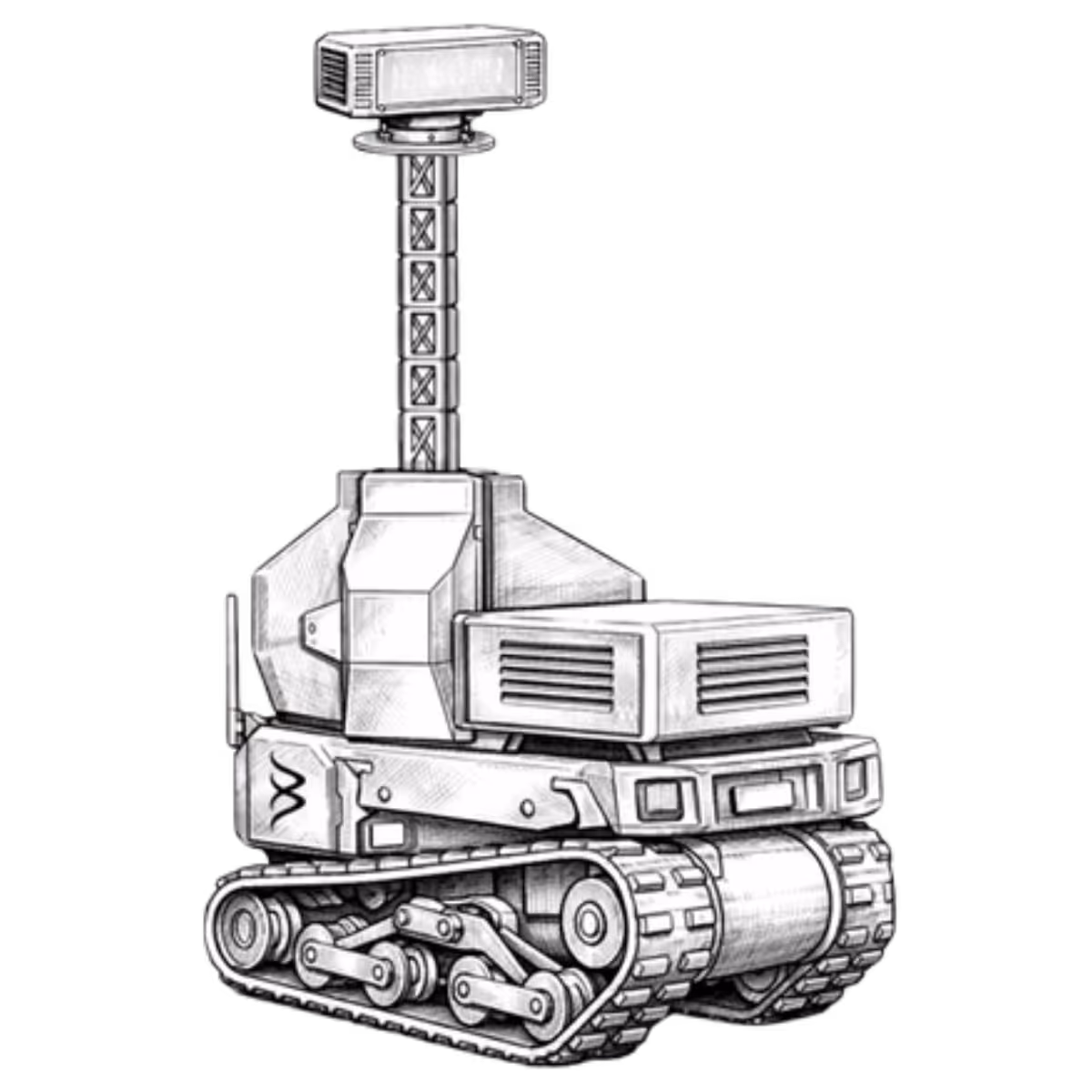

Communication & Detection
Extends network connectivity and situational awareness through modular integration of radios, sensors, auxiliary power stations, mast systems, and variety of ISR payloads.
Ready for Your Mission?
Contact BlueSky Innovations for more information or to schedule a demonstration.
