Echogard 4 Up Radar Configuration Integrated with BlueSky Mast 200 Lift Series - AL2 Fast Mechanical Lift System
4D Perimeter Security and Counter-UAS Delivered
BlueSky Mast 200 Series - AL2 Fast Mechanical Lift System elevates Echogard 4 Up Radar Configuration to deliver 4D perimeter security and reliable ground-to-air surveillance for critical defense and infrastructure assets.
4D Perimeter Security and Counter-UAS Delivered
The BlueSky Mast AL2 Fast Mechanical Lift System elevates the Echogard 4 Up Radar Configuration to deliver 4D perimeter security and reliable ground-to-air surveillance for critical defense and infrastructure assets.
Mission Benefits
Elevated 3D Perimeter Coverage
BlueSky's 16.5-foot (5-meter) mast system lifts the 4D radar array above ground clutter, delivering unhindered target acquisition for perimeter defense and airspace monitoring.
Simultaneous High-Density Tracking
Supports tracking up to 20 targets simultaneously while utilizing search-while-track technology to update active tracks up to 10 Hz without missing the broader field of view.
Rapid Deployment in Austere Conditions
Designed for operational readiness, BlueSky Mast 200 Lift Series - AL2 system deploys in just 10 minutes with a two-person team.
Ruggedized Structural Durability
Tested to MIL-STD-810G standards and rated for 70 mph wind loading, the mast ensures robust mechanical survivability in severe operating environments.
Optimized Payload Support
200 Lift Series - AL2 configuration securely accommodates up to 65 lbs (29 kg) of high-performance radar hardware.

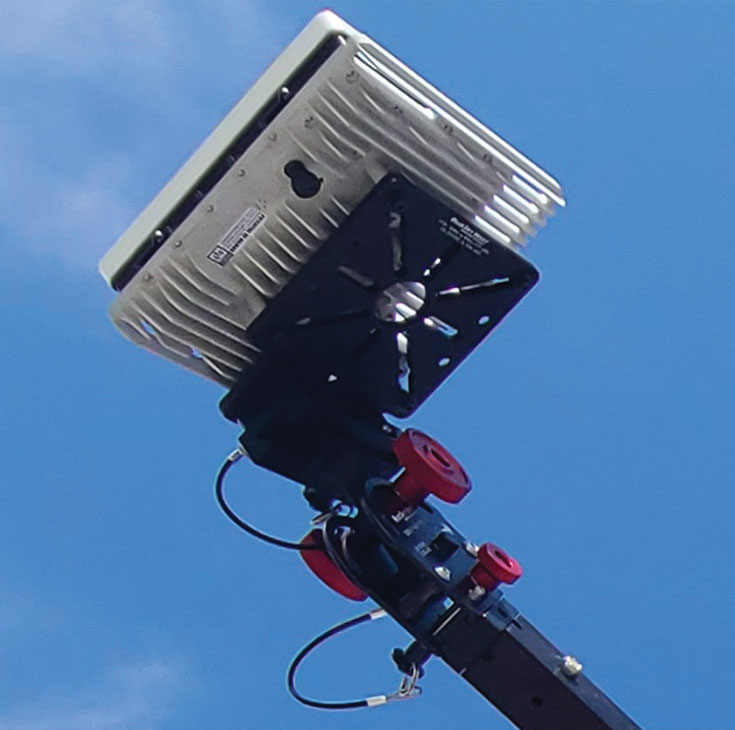

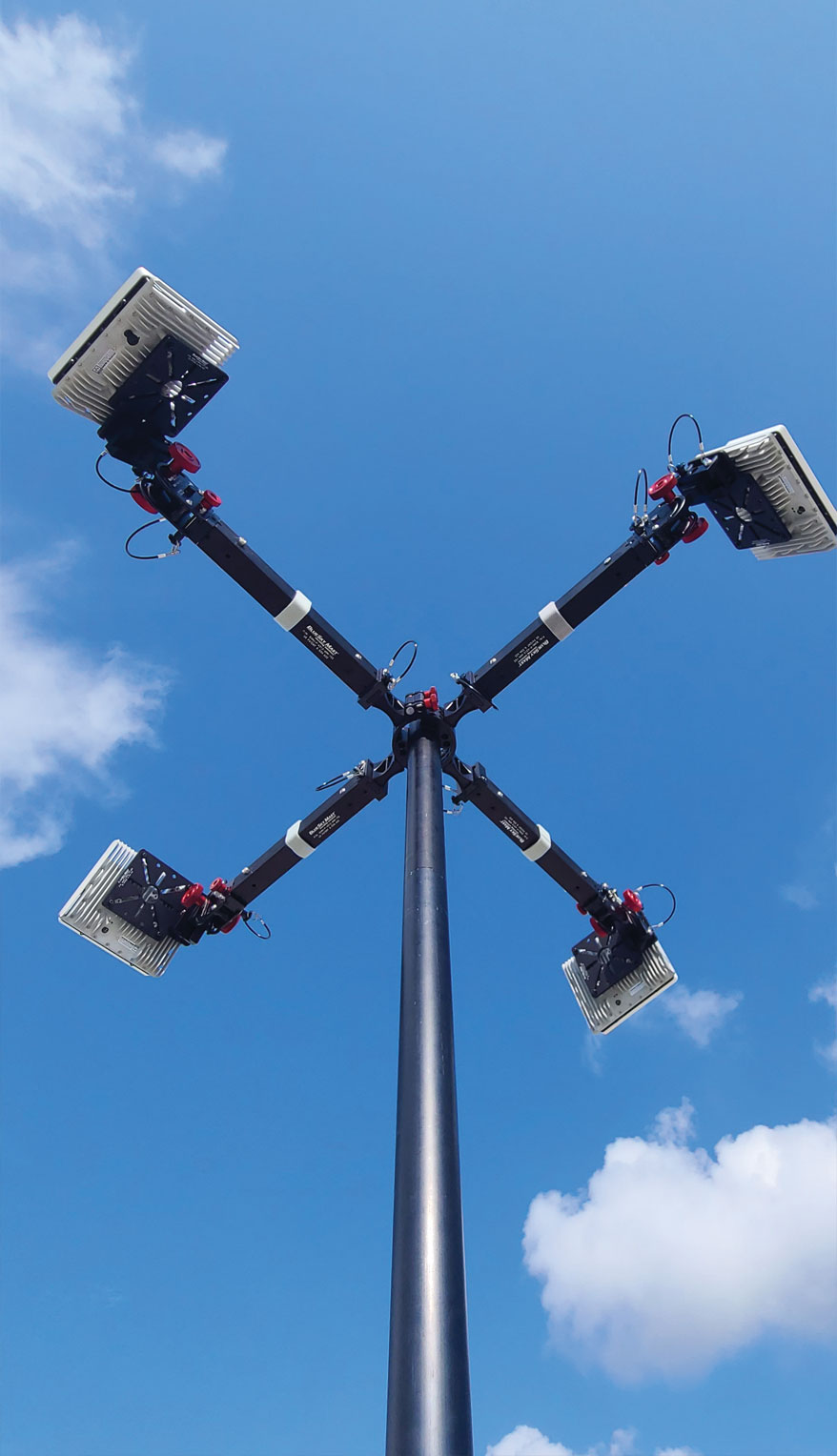

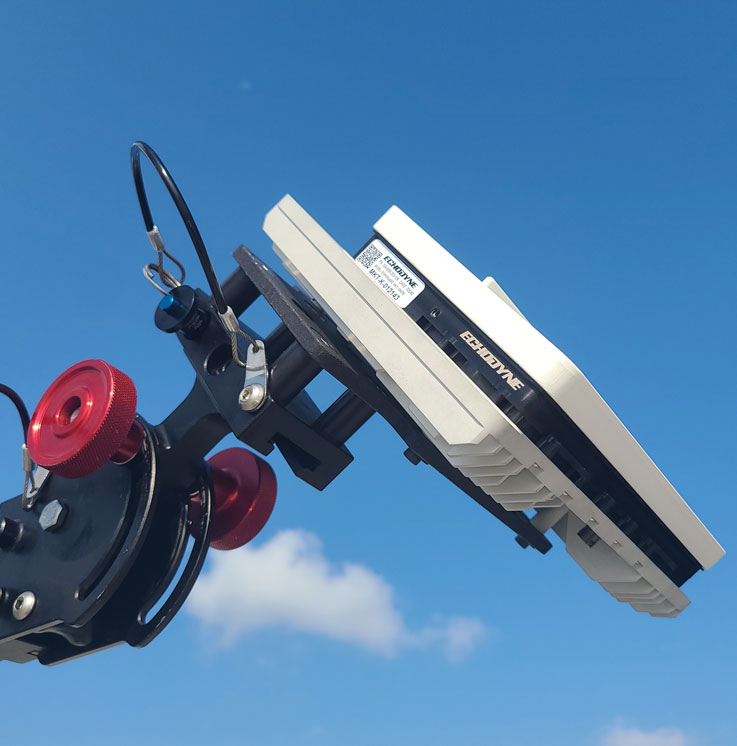

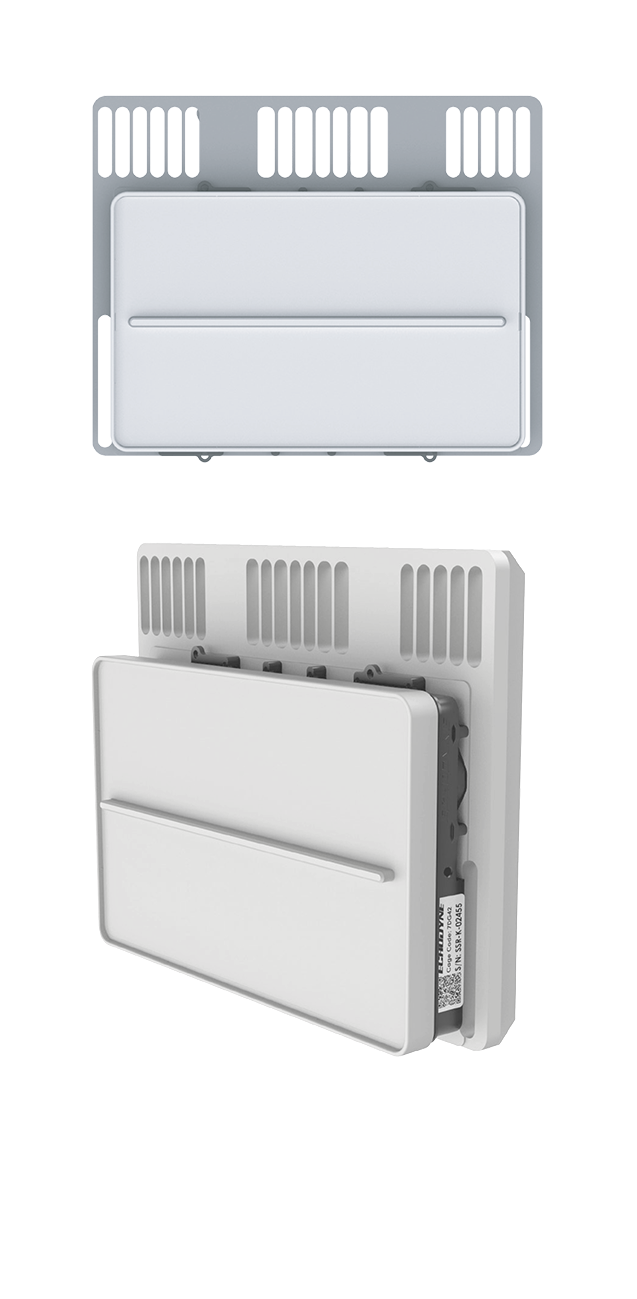

BlueSky Mast 200 Lift Series AL 2 - 5m + Echogard 4 Up Radar Configuration
BlueSky Mast System:
AL2 Lift Series
BlueSky Mast Model:
AL2 Lift Series - 5 Meters (16.5 ft.)
Mast Height:
5
m /
16.5
ft
Mast Payload Capacity:
29.5
kg /
65
lbs
Deployment Method:
Fast Mechanical Lift System
Deployment Time:
2
-
5
min;
1
people
Material:
Aerospace Aluminum Alloy
Finish:
Black Anodized
Guying:
Not Included / Optional
Outside Diameter (OD):
2
Testing:
MIL-STD-810G
